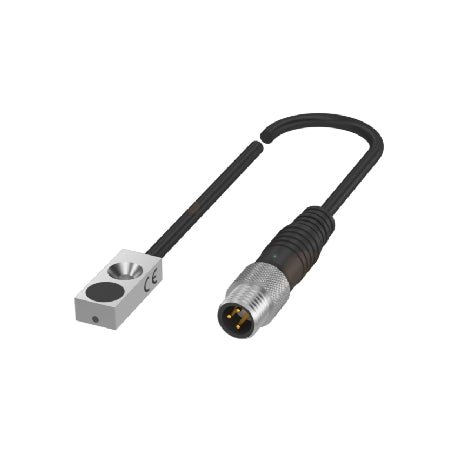

BALLUFF BES05KY INDUCTIVE PROXIMITY SENSOR SWITCHES AND PROXIMITY SENSORS

$253.31 CAD

Special Offer Out of Stock

We have 2 in stock

Product variants

Quantity

Features and Benefits

Plug or cable connection
Cylindrical and various rectangular designs
Variants for DC-3/4 wire, IO-Link and DC, AC and AC/DC-2 wire
Flush and non-flush sensors
Short and long designs with and without fixed stop
Explosion proof proximity switches and sensors
High-pressure-resistant sensors up to 500 bar
High-temperature sensors up to 230 °C
Hygienic sensors with high chemical resistance and a high degree of protection up to IP69K
Magnetic field resistant sensors
Weld-immune proximity switches and sensors
Factor 1 sensors or NAMUR sensors

View full details

Description

Data sheet

Specification

Dimension: 19 x 8 x 4.7 mm
Style Housing: 16x8x4.7
Installation: for flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 5000 Hz
Housing material: Stainless steel
Material sensing surface: Ceramic
Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, Silicone
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP65
Approval/Conformity: cULus, CE, UKCA, WEEE
