Balluff

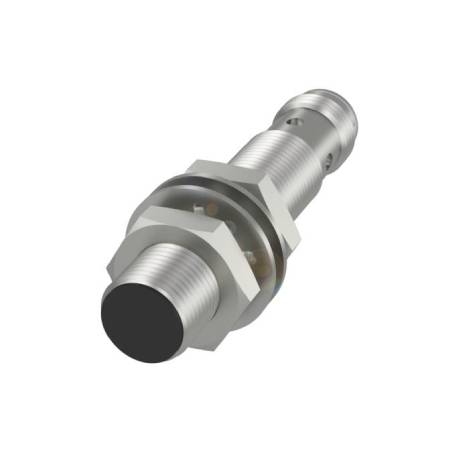

BALLUFF BES05KH INDUCTIVE STANDARD SENSOR

BALLUFF BES05KH INDUCTIVE STANDARD SENSOR

$161.22 CAD
$161.22 CAD
Sale Sold out
We have 3 in stock

Features and Benefits

  • Connection: M12x1-Male, 3-pin, A-coded
  • Operating temperature: -25 to 70 °C
  • IP rating: IP68, according to BWN Pr 20
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 12 x 60 mm
Style Housing: Ø 12 mm
Installation: quasi-flush
Range: 8 mm
Switching output: PNP Normally open (NO)
Switching frequency: 500 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP68, according to BWN Pr 20
Approval/Conformity: CE, UKCA, cULus, WEEE
