balluff

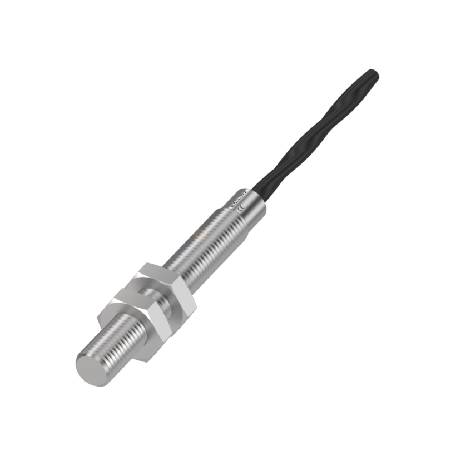

BALLUFF BES05FN TEMPERATURE-RATED INDUCTIVE SENSORS

BALLUFF BES05FN TEMPERATURE-RATED INDUCTIVE SENSORS

Regular price $452.13 CAD
Regular price Sale price $452.13 CAD
Sale Sold out
We have 5 in stock

Features and Benefits

  • Connection: Cable, 5.0 m, PTFE
  • Operating temperature: 0 to 140 °C
  • IP rating: IP50
  • Temperature ranges up to 230 °C available
  • Stainless steel housing
  • Various configurations and sizes
View full details

Description

Balluff BES-series temperature-rated inductive sensors can withstand ultra-high temperatures up to 230 °C. Depending on the version, both the housing and cable construction are designed for elevated temperatures. The electronics are fully integrated and can be easily connected to appropriate accessories.

Several form factors allow these sensors to be easily integrated into various situations, even those where space is at a premium. Some versions are also available as high pressure-rated sensors. This represents a significant expansion to the range of applications.

Specification

Dimension: Ø 8 x 60 mm
Style Housing: M8x1
Installation: Flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 600 Hz
Housing material: Stainless steel
Material sensing surface: LCP
Connection: Cable, 5.0 m, PTFE
Operating voltage Ub: 10...30 VDC
Ambient temperature: 0...140 °C
IP rating: IP50
Approval/Conformity: CE, UKCA, WEEE
