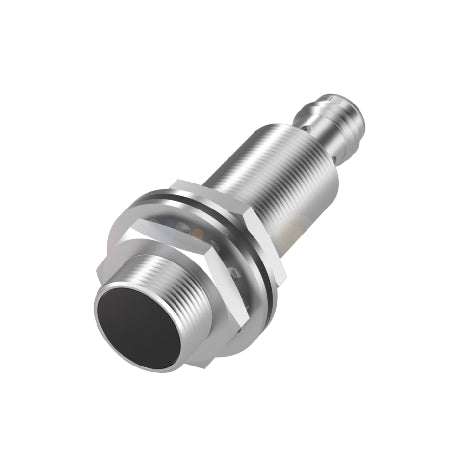

BALLUFF BES05EU INDUCTIVE PROXIMITY SWITCHES AND PROXIMITY SENSORS

Dimension: Ø 18 x 66 mm
Style Housing: M18x1
Range: 12 mm
Switching output: PNP Normally open (NO)
Switching frequency: 550 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP68, according to BWN Pr 20
Approval/Conformity: CE, UKCA, cULus, WEEE
