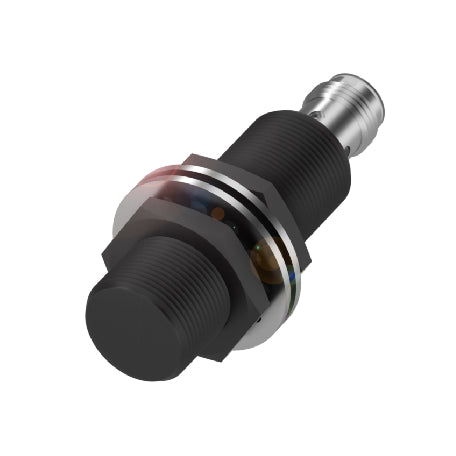

BALLUFF BES056C INDUCTIVE FULL-METAL/ WELD-IMMUNE SENSORS

BALLUFF BES056C INDUCTIVE FULL-METAL/ WELD-IMMUNE SENSORS

Regular price $198.09 CAD
Regular price Sale price $198.09 CAD
Sale Sold out

Feature and Benefits

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Pressure rating max: 40 bar
  • Extremely robust
  • High switching distance
  • Various configurations and sizes
View full details

Description

Automation without inductive sensors can hardly be imagined. Wear-resistant, reliable non-contact position detection of metallic objects is required wherever automation is used, whether in mechanical engineering, electronics production, automotive, food, or plastics industries.

Balluff offers a wide range of inductive sensors with diverse designs for nearly any application: from standard sensors to sensors with increased switching distance, hygienic sensors, high-pressure sensors, ex-zone sensors for hazardous areas, and factor 1 sensors. Some sensors have an additional ceramic or PTFE coating so that weld spatter, for example, cannot adhere to them. Sensors that are both factor 1 and all-metal are also available.

Aided by inductive sensors from Balluff, you can automate, monitor, and control processes and conditions at the highest quality, even in extreme environments.

Specification

Dimension: Ø 18 x 65 mm
Style Housing: M18x1
Installation: for flush mounting
Range: 7.2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 350 Hz
Housing material: Stainless steel, coated with PTFE
Material sensing surface: Stainless steel coated with PTFE
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Pressure rating max.: 40 bar
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
