Balluff

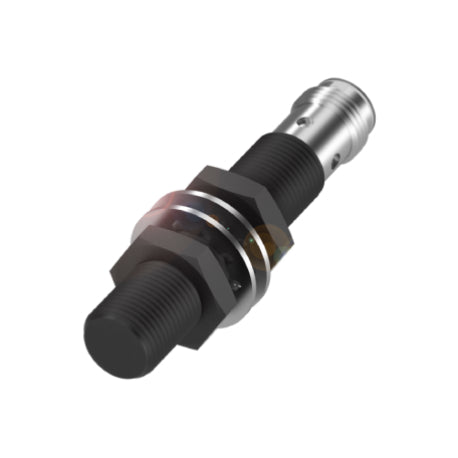

BALLUFF BES056A INDUCTIVE FULL-METAL/ WELD-IMMUNE SENSORS

$193.66 CAD

Sale Out of Stock

Product variants

Features and Benefits

Connection: M12x1-Male, 4-pin, A-coded
Operating temperature: -25 to 70 °C
IP rating: IP67
Pressure rating max: 60 bar
Extremely robust
High switching distance
Various configurations and sizes

View full details

Description

The resilient stainless steel BES inductive full-metal sensors have been specifically developed for applications in harsh environments. The housing and sensor front are manufactured from stainless steel. The robust active surface is resistant to impacts, mechanical stresses, and abrasive media.

Balluff offer additional variants with PTFE and ceramic coating against welding spatter. The extreme resilience of Balluff sensors can reduce your maintenance costs, thus increasing the availability of your system.

Data sheet

Specification

Dimension: Ø 12 x 65 mm
Style Housing: M12x1
Installation: Flush mounting
Range: 4 mm
Switching output: PNP Normally open (NO)
Switching frequency: 500 Hz
Housing material: Stainless steel, coated with PTFE
Material sensing surface: Stainless steel coated with PTFE
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Pressure rating max: 60 bar
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE

BALLUFF BES056A INDUCTIVE FULL-METAL/ WELD-IMMUNE SENSORS
