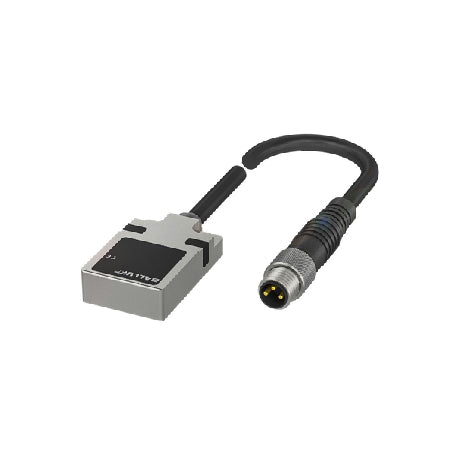

BALLUFF BES04ZA INDUCTIVE PROXIMITY SENSOR

$201.25 CAD

Sale Out of Stock

We have 66 in stock

Product variants

Quantity

Features and Benefits

Connection: Pre-wired with a 40cm pigtail terminated by a 3-pin M8 male connector
Operating temperature: -25 to 70 °C
Operating Voltage: 10 to 30 VDC
IP Rating: IP67
Material Sensing Surface: PA12 (polyamide)

View full details

Description

Balluff offers a wide range of inductive proximity switches and sensors for various applications and industries. Whether standard inductive proximity sensors, high-pressure sensors, hygienic sensors / washdown compliant, factor 1 sensors, magnetic field resistant by magnetic shielding, weld immune proximity sensors, high temperature sensors, explosion-proof (IECEx, ATEX) or NAMUR sensors, you are guaranteed to find the right product for your individual application in our portfolio thanks to different housing materials and sealing methods. We offer different designs, housing diameters and thread sizes for easy integration in a wide range of situations and for optimum solutions even where space is limited.

The technology used worldwide has an optimum price-performance ratio and can be supplied in short delivery times, even for large quantities.

Increase the availability of your systems and reduce maintenance and storage costs at the same time with inductive proximity switches from Balluff.

Data sheet

Specification

Dimension: 20mm x 32mm x 8mm
Style Housing: Rectangular
Installation: Flush mounting
Range: 7mm
Switching output: PNP/NPN Normally Open (NO)
Switching frequency: 150Hz max.
Housing material: Die-cast Zinc, Aluminum
Material sensing surface: Duroplast
Connection: Pre-wired with a 40cm pigtail terminated by a 3-pin M8 male connector
Operating voltage Ub: 10-30Vdc (12Vdc / 24Vdc nom.)
Ambient temperature: -13...+158°F / -25...+70 °C
Pressure rating max: 75 VDC
IP rating: IP67
Approval/Conformity: cULus, CE, WEEE, EAC
