Balluff

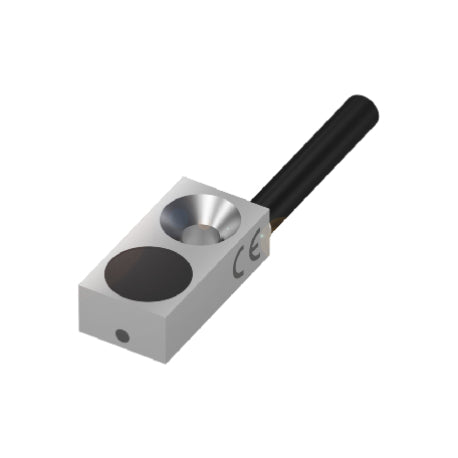

BALLUFF BES04F6 INDUCTIVE STANDARD SENSOR

$110.36 CAD

Sale Out of Stock

Product variants

Features and Benefits

Connection: Cable, 2.00 m, PUR
Operating temperature: -25 to 70 °C
IP rating: IP67
Shielded and unshielded versions
Plug or cable connection

View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: 16 x 8 x 4.7 mm
Style Housing: 16x8x4.7
Installation: Flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 5000 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: Ceramic
Connection: Cable, 2.00 m, PUR
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: cULus, CE, WEEE

BALLUFF BES04F6 INDUCTIVE STANDARD SENSOR
