balluff

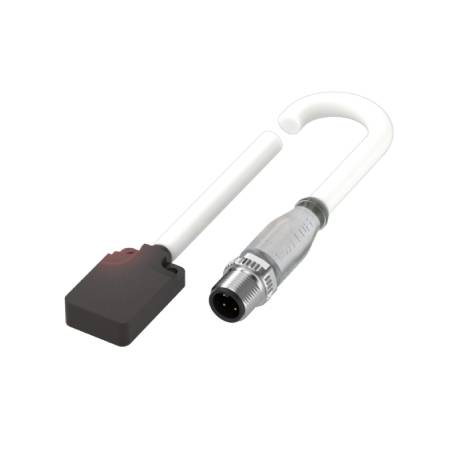

BALLUFF BES049Y INDUCTIVE FACTOR 1 SENSORS

BALLUFF BES049Y INDUCTIVE FACTOR 1 SENSORS

Regular price $606.06 CAD
Regular price Sale price $606.06 CAD
Sale Sold out
We have 24 in stock

Features and Benefits

  • Connection: M12x1-Male, 4-pin, A-coded, Cable with connector, 0.30 m, PUR
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Additional features: Factor 1, Housing resistant to weld spatter, Weld immune
  • Magnetic-field-resistant
  • Installation in different metals possible
  • High-precision and flexible use
View full details

Description

BES inductive factor 1 sensors from Balluff can be used wherever different types of metals must be uniformly identified with high precision. An all-around reliable sensor for recognizing all metals, without a reduction factor at the switching distance: ferrous and non-ferrous metals, steel, brass, aluminum etc.


Additionally, they are magnetic-field-resistant, making them useable in areas with a strong electromagnetic field – such as welding plants. We also offer variants with PTFE coatings for protection against welding spatter.

Specification

Dimension: 32 x 20 x 8 mm
Style Housing: 32x20x8
Installation: Flush mounting
Range: 5 mm
Switching output: PNP Normally open (NO)
Switching frequency: 20 Hz
Housing material: Stainless steel, PTFE coated
Material sensing surface: Stainless steel, W51 ceramic coating
Connection: Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
