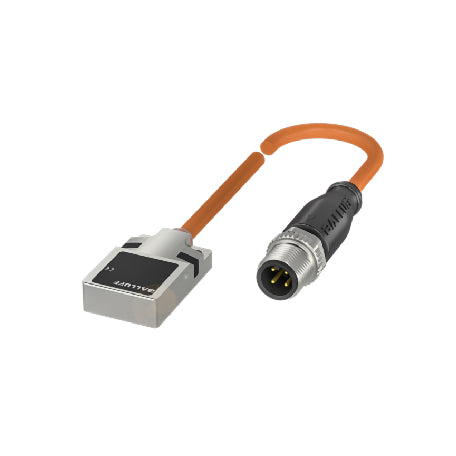

BALLUFF BES048J MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSORS

BALLUFF BES048J MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSORS

Regular price $225.19 CAD
Regular price Sale price $225.19 CAD
Sale Sold out
We have 20 in stock

Feature and Benefits

  • Connection: M12x1-Male, 4-pin, A-coded, Cable with connector, 0.20 m, TPU
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Extremely robust
  • Magnetic-field-resistant
  • Weld-splatter-resistant
View full details

Description

Balluff BES magnetic-field-resistant inductive sensors are ideal for use in areas with strong electromagnetic fields, such as in welding and induction hardening installations. They are resistant to magnetic fields arising from electric welding currents of up to 25 kA.

They are up to the task with their resiliant ceramic coating, resistant to metal spatters, slag, and combustion residues. Their extreme robustness reduces maintenance costs, which increases system availability. This enables the highest precision work in every area of use.

Specification

Dimension: 32 x 20 x 8 mm
Style Housing: 32x20x8
Installation: for flush mounting
Range: 5 mm
Switching output: PNP Normally open (NO)
Switching frequency: 100 Hz
Housing material: Zinc, Die casting
Material sensing surface: PA 12
Connection: Cable with connector, M12x1-Male, 4-pin, 0.20 m, TPU
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Magnetic field immune: magnetic field immune (AC/DC)
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
