Balluff

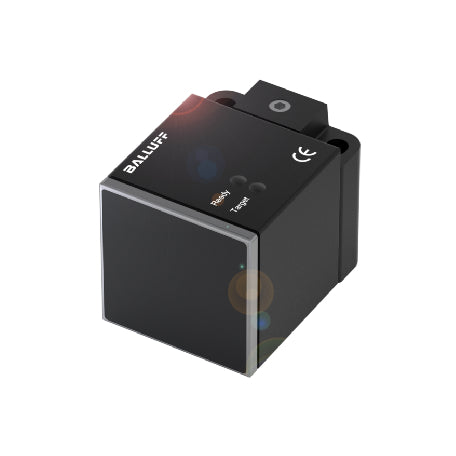

BALLUFF BES0457 INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSORS

$262.92 CAD

Sale Out of Stock

Product variants

Feature and Benefits

Connection: M12x1-Male, 4-pin, A-coded
Operating temperature: -25 to 70 °C
IP rating: IP67
Additional features: Factor 1
Magnetic-field-resistant
Installation in different metals possible
High-precision and flexible use

View full details

Description

BES inductive factor 1 sensors from Balluff can be used wherever different types of metals must be uniformly identified with high precision. An all-around reliable sensor for recognizing all metals, without a reduction factor at the switching distance: ferrous and non-ferrous metals, steel, brass, aluminum etc.

Additionally, they are magnetic-field-resistant, making them useable in areas with a strong electromagnetic field – such as welding plants. We also offer variants with PTFE coatings for protection against welding spatter.

Data sheet

Specification

Dimension: 40 x 40 x 62 mm
Style Housing: 40x40
Installation: for flush mounting
Range: 20 mm
Switching output: PNP NO/NC
Switching frequency: 400 Hz
Housing material: PBT, partly coated
Material sensing surface: ceramic coated
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Magnetic field immune: magnetic field immune (AC/DC)
IP rating: IP67
Approval/Conformity: CE, cULus, WEEE
Additional features: Factor 1

BALLUFF BES0457 INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSORS
