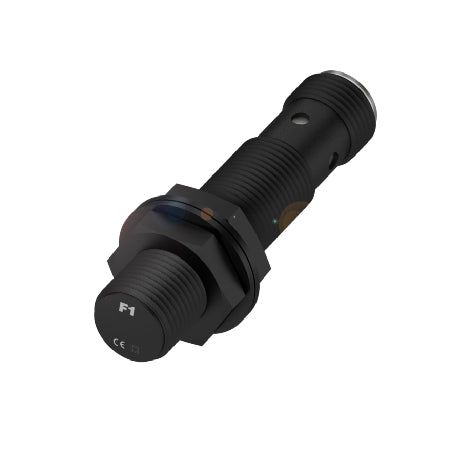

BALLUFF BES0452 INDUCTIVE FACTOR 1 SENSORS

BALLUFF BES0452 INDUCTIVE FACTOR 1 SENSORS

$190.39 CAD
$190.39 CAD
Sale Sold out
We have 2 in stock

Feature and Benefits

  • Plug or cable connection
  • Cylindrical and various rectangular designs
  • Variants for DC-3/4 wire, IO-Link and DC, AC and AC/DC-2 wire
  • Flush and non-flush sensors
  • Short and long designs with and without fixed stop
  • Explosion proof proximity switches and sensors
  • High-pressure-resistant sensors up to 500 bar
  • High-temperature sensors up to 230 °C
  • Hygienic sensors with high chemical resistance
  • High degree of protection up to IP69K
  • Magnetic field resistant sensors
  • Weld-immune proximity switches and sensors
  • Factor 1 sensors or NAMUR sensors
View full details

Description

BES inductive factor 1 sensors from Balluff can be used wherever different types of metals must be uniformly identified with high precision. An all-around reliable sensor for recognizing all metals, without a reduction factor at the switching distance: ferrous and non-ferrous metals, steel, brass, aluminum etc.


Additionally, they are magnetic-field-resistant, making them useable in areas with a strong electromagnetic field – such as welding plants. We also offer variants with PTFE coatings for protection against welding spatter.

Data sheet

Specification

Dimension: Ø 12 x 55 mm
Style Housing: M12x1
Installation: for flush mounting
Range: 4 mm
Switching output: PNP Normally open (NO)
Switching frequency: 2000 Hz
Housing material: Brass, PTFE coated
Material sensing surface: PPS
Connection: Connector, M12x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Magnetic field immune: magnetic field immune (AC/DC)
IP rating: IP67
Approval/Conformity: CE, cULus, WEEE
Additional features: Factor 1, Weld immune
