Balluff

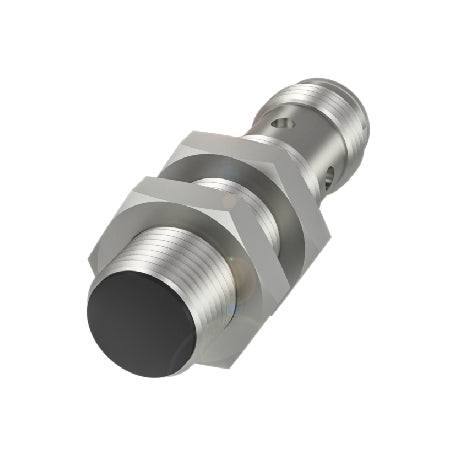

BALLUFF BES0450 INDUCTIVE PROXIMITY SENSOR SWITCHES AND PROXIMITY SENSORS

BALLUFF BES0450 INDUCTIVE PROXIMITY SENSOR SWITCHES AND PROXIMITY SENSORS
Regular price $225.75 CAD
Regular price Sale price $225.75 CAD
Special Offer Out of Stock
We have 3 in stock

Features and Benefits

  • Plug or cable connection
  • Cylindrical and various rectangular designs
  • Variants for DC-3/4 wire, IO-Link and DC, AC and AC/DC-2 wire
  • Flush and non-flush sensors
  • Short and long designs with and without fixed stop
  • Explosion proof proximity switches and sensors
  • High-pressure-resistant sensors up to 500 bar
  • High-temperature sensors up to 230 °C
  • Hygienic sensors with high chemical resistance and a high degree of protection up to IP69K
  • Magnetic field resistant sensors
  • Weld-immune proximity switches and sensors
  • Factor 1 sensors or NAMUR sensors
View full details

Description

Specification

Dimension: Ø 12 x 45 mm
Style Housing: M12x1
Installation: for flush mounting
Range: 4 mm
Switching output: PNP Normally open (NO)
Switching frequency: 2500 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: Ceramic coated
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP68
Approval/Conformity: CE, cULus, WEEE
