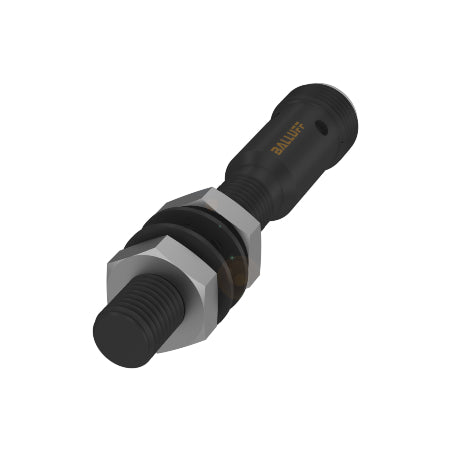

BALLUFF BES03YP INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSORS

BALLUFF BES03YP INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSORS

$203.48 CAD
$203.48 CAD
Sale Sold out
We have 5 in stock

Feature and Benefits

  • Connection: M8x1-Male, 3-pin
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Additional features: Factor 1
  • Magnetic-field-resistant
  • Installation in different metals possible
  • High-precision and flexible use
View full details

Description

BES inductive factor 1 sensors from Balluff can be used wherever different types of metals must be uniformly identified with high precision. An all-around reliable sensor for recognizing all metals, without a reduction factor at the switching distance: ferrous and non-ferrous metals, steel, brass, aluminum etc.

Additionally, they are magnetic-field-resistant, making them useable in areas with a strong electromagnetic field – such as welding plants. We also offer variants with PTFE coatings for protection against welding spatter.

Data sheet

Specification

Dimension: Ø 8 x 65 mm
Style Housing: M8x1
Installation: for flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 1000 Hz
Housing material: Brass, PTFE coated
Material sensing surface: LCP
Connection: Connector, M12x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Magnetic field immune: magnetic field immune (AC/DC)
IP rating: IP67
Approval/Conformity: CE, cULus, WEEE
Additional features: Factor 1, Weld immune
