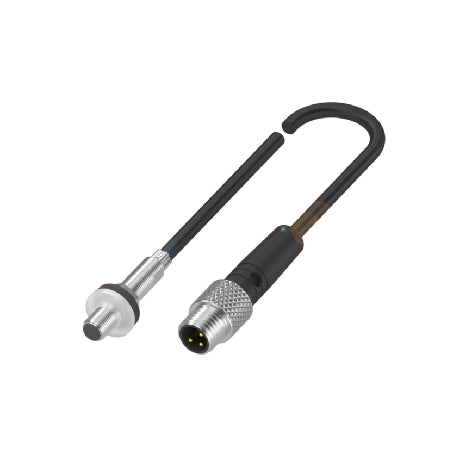

BALLUFF BES03LC PRESSURE-RATED/ FULL-METAL INDUCTIVE SENSORS

BALLUFF BES03LC PRESSURE-RATED/ FULL-METAL INDUCTIVE SENSORS

Regular price $252.84 CAD
Regular price Sale price $252.84 CAD
Sale Sold out

Features and Benefits

  • Connection: M8x1-Male, 3-pin, Cable with connector, 0.30 m, PUR
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Pressure rating max: 100 bar
  • Short and long configurations
  • With and without fixed stop
View full details

Description

Balluff BHS pressure-rated inductive sensors withstand pressures up to 500 bar. They are perfectly suited for monitoring the position of your hydraulics, such as when controlling the end position of hydraulic cylinders or monitoring valve positions.

Their durability is made possible by media-resistant housing materials and a special sealing process. For your individual applications, we offer a comprehensive range of product configurations with different housing diameters and thread sizes.

Specification

Dimension: Ø 5 x 27 mm
Style Housing: M5x0.5
Installation: for flush mounting
Range: 0.8 mm
Switching output: PNP Normally open (NO)
Switching frequency: 3000 Hz
Housing material: Stainless steel
Material sensing surface: Ceramic
Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Pressure rating max.: 100 bar
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
