balluff

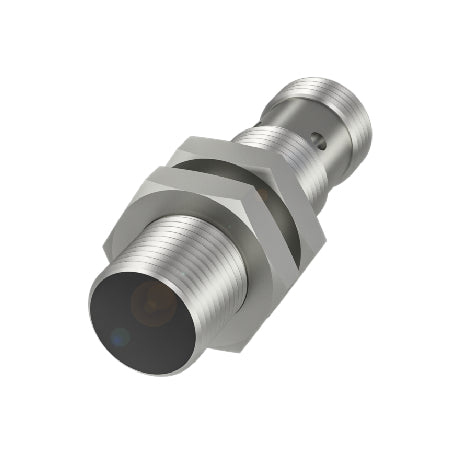

BALLUFF BES02ZU BES M EX

BALLUFF BES02ZU BES M EX

Regular price $203.05 CAD
Regular price Sale price $203.05 CAD
Sale Sold out

Features and Benefits

  • Connection: Connector, M12x1-Male, 4-pin
  • Operating temperature: -20 to 70 °C
  • Ex category: ATEX: 1D (EPL Da), ATEX: 1G (EPL Ga), ATEX: 2D (EPL Db), ATEX: 2G (EPL Gb), ATEX: 3D (EPL Dc), ATEX: 3G (EPL Gc)
View full details

Description

Automation without inductive sensors can hardly be imagined. Wear-resistant, reliable non-contact position detection of metallic objects is required wherever automation is used, whether in mechanical engineering, electronics production, automotive, food, or plastics industries.

Balluff offers a wide range of inductive sensors with diverse designs for nearly any application: from standard sensors to sensors with increased switching distance, hygienic sensors, high-pressure sensors, ex-zone sensors for hazardous areas, and factor 1 sensors. Some sensors have an additional ceramic or PTFE coating so that weld spatter, for example, cannot adhere to them. Sensors that are both factor 1 and all-metal are also available.

Aided by inductive sensors from Balluff, you can automate, monitor, and control processes and conditions at the highest quality, even in extreme environments.

Specification

Dimension: Ø 12 x 45 mm
Style Housing: M12x1
Installation: for flush mounting
Range: 4 mm
Interface: NAMUR
Switching frequency: 700 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 7.7...9 VDC
Ambient temperature: -20...70 °C
Ex category: ATEX: 1D (EPL Da), ATEX: 1G (EPL Ga), ATEX: 2D (EPL Db), ATEX: 2G (EPL Gb), ATEX: 3D (EPL Dc), ATEX: 3G (EPL Gc)
Approval/Conformity: CE, ATEX, IECEx, FM, cCSAus, WEEE, CCC Ex
