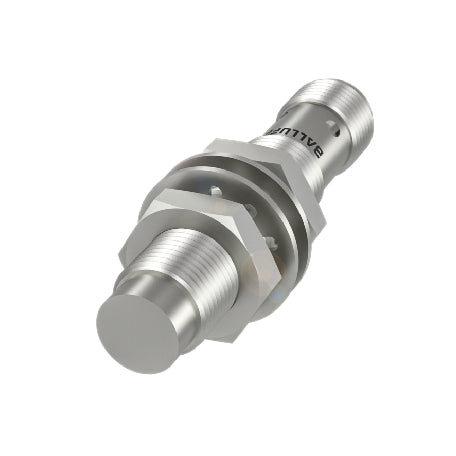

BALLUFF BES02WE PRESSURE-RATED/ FULL-METAL INDUCTIVE SENSORS

BALLUFF BES02WE PRESSURE-RATED/ FULL-METAL INDUCTIVE SENSORS

$220.67 CAD
$220.67 CAD
Sale Sold out

Features and Benefits

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Pressure rating max: 60 bar
  • Short and long configurations
  • With and without fixed stop
View full details

Description

Balluff BHS pressure-rated inductive sensors withstand pressures up to 500 bar. They are perfectly suited for monitoring the position of your hydraulics, such as when controlling the end position of hydraulic cylinders or monitoring valve positions.

Their durability is made possible by media-resistant housing materials and a special sealing process. For your individual applications, we offer a comprehensive range of product configurations with different housing diameters and thread sizes.

Data sheet

Specification

Dimension: Ø 12 x 60 mm
Style Housing: M12x1
Installation: non-flush
Range: 10 mm
Switching output: PNP Normally open (NO)
Switching frequency: 350 Hz
Housing material: Stainless steel
Material sensing surface: Stainless steel
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Pressure rating max.: 80 bar
IP rating: IP67
Approval/Conformity: CE, cULus, WEEE
