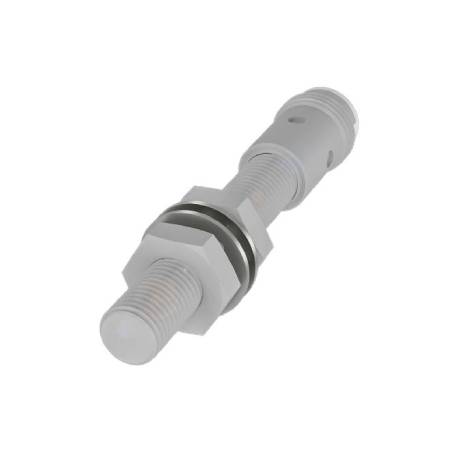

BALLUFF BES02N6 PRESSURE-RATED/ FULL-METAL INDUCTIVE SENSORS

Dimension: Ø 8 x 65 mm
Style Housing: M8x1
Installation: for flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 750 Hz
Housing material: Stainless steel, PTFE coated
Material sensing surface: Stainless steel, coated
Connection: Connector, M12x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Pressure rating max.: 80 bar
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
