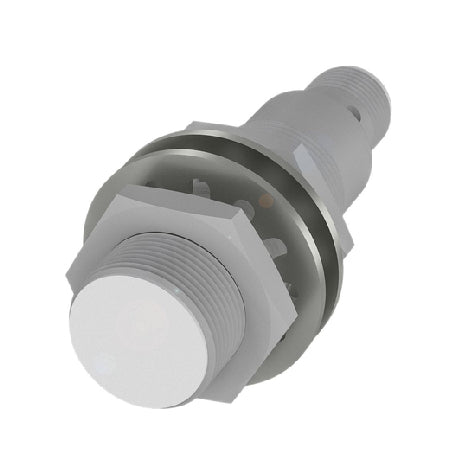

BALLUFF BES02JF MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSORS

Dimension: Ø 18 x 65 mm
Style Housing: M18x1
Installation: for flush mounting
Range: 5 mm
Switching output: PNP Normally open (NO)
Switching frequency: 500 Hz
Housing material: Brass, PTFE coated
Material sensing surface: Ceramic coated
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Magnetic field immune: magnetic field immune (AC/DC)
IP rating: IP67
Additional features: Weld immune
Approval/Conformity: CE, UKCA, cULus, WEEE
