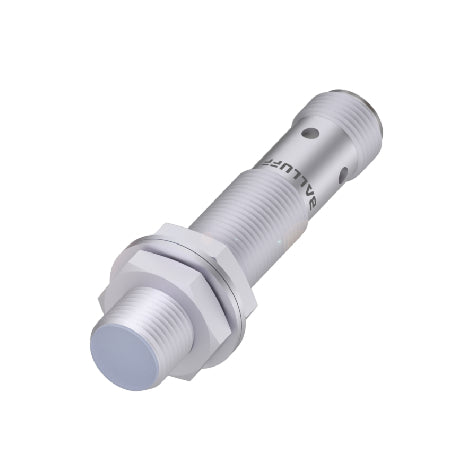

BALLUFF BES02J5 MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE INDUCTIVE SENSORS

Dimension: Ø 12 x 61 mm
Style Housing: M12x1
Installation: for flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 1000 Hz
Housing material: Stainless steel, PTFE coated
Material sensing surface: PTFE
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
Magnetic field immune: magnetic field immune (AC/DC)
IP rating: IP67
Approval/Conformity: cULus, CE, UKCA, WEEE
