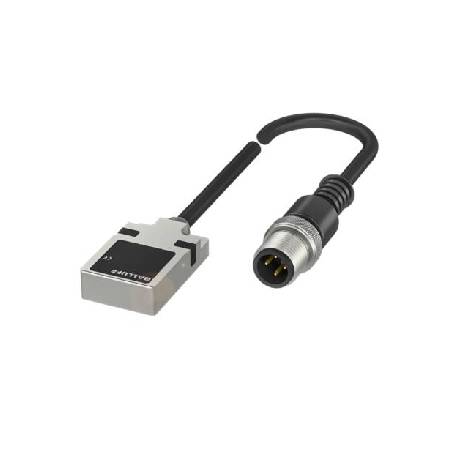

BALLUFF BES01W2 INDUCTIVE STANDARD SENSOR

BALLUFF BES01W2 INDUCTIVE STANDARD SENSOR

$196.91 CAD
$196.91 CAD
Sale Sold out
We have 5 in stock

Features and Benefits

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -25 to 70 °C
  • IP rating: IP6
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: 32 x 20 x 8 mm
Style Housing: 32x20x8
Installation: for flush mounting
Range: 7 mm
Switching output: PNP Normally open (NO)
Switching frequency: 150 Hz
Housing material: Zinc, Die casting
Material sensing surface: Fortron 6165 A6
Connection: Cable with connector, M12x1-Male, 3-pin, 0.30 m, Silicone
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
