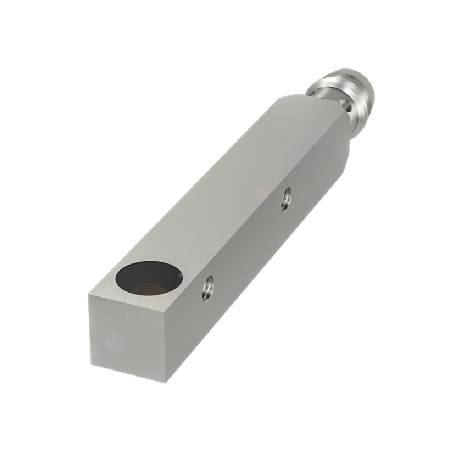

BALLUFF BES0180 INDUCTIVE STANDARD SENSOR

BALLUFF BES0180 INDUCTIVE STANDARD SENSOR

$161.86 CAD
$161.86 CAD
Sale Sold out
We have 8 in stock

Features and Benefits

  • Connection: M8x1-Male, 3-pin
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: 59 x 8 x 8 mm
Style Housing: 8x8
Installation: Flush mounting
Range: 1.5 mm
Switching output: PNP Normally open (NO)
Switching frequency: 5000 Hz
Housing material: Zinc, Die casting
Material sensing surface: PBT
Connection: Connector, M8x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
