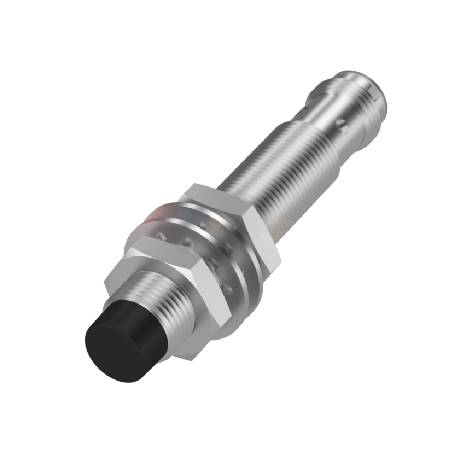

BALLUFF BES0178 INDUCTIVE STANDARD SENSOR

BALLUFF BES0178 INDUCTIVE STANDARD SENSOR

Regular price $165.21 CAD
Regular price Sale price $165.21 CAD
Sale Sold out
We have 10 in stock

Features and Benefits

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -40 to 85 °C
  • IP rating: IP68
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Specification

Dimension: Ø 12 x 70 mm
Style Housing: M12x1
Installation: Non-flush
Range: 4 mm
Switching output: PNP NO/NC
Switching frequency: 2500 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -40...85 °C
IP rating: IP68
Approval/Conformity: CE, UKCA, cULus, WEEE
