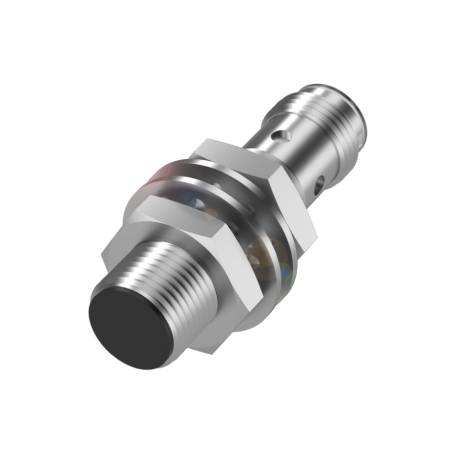

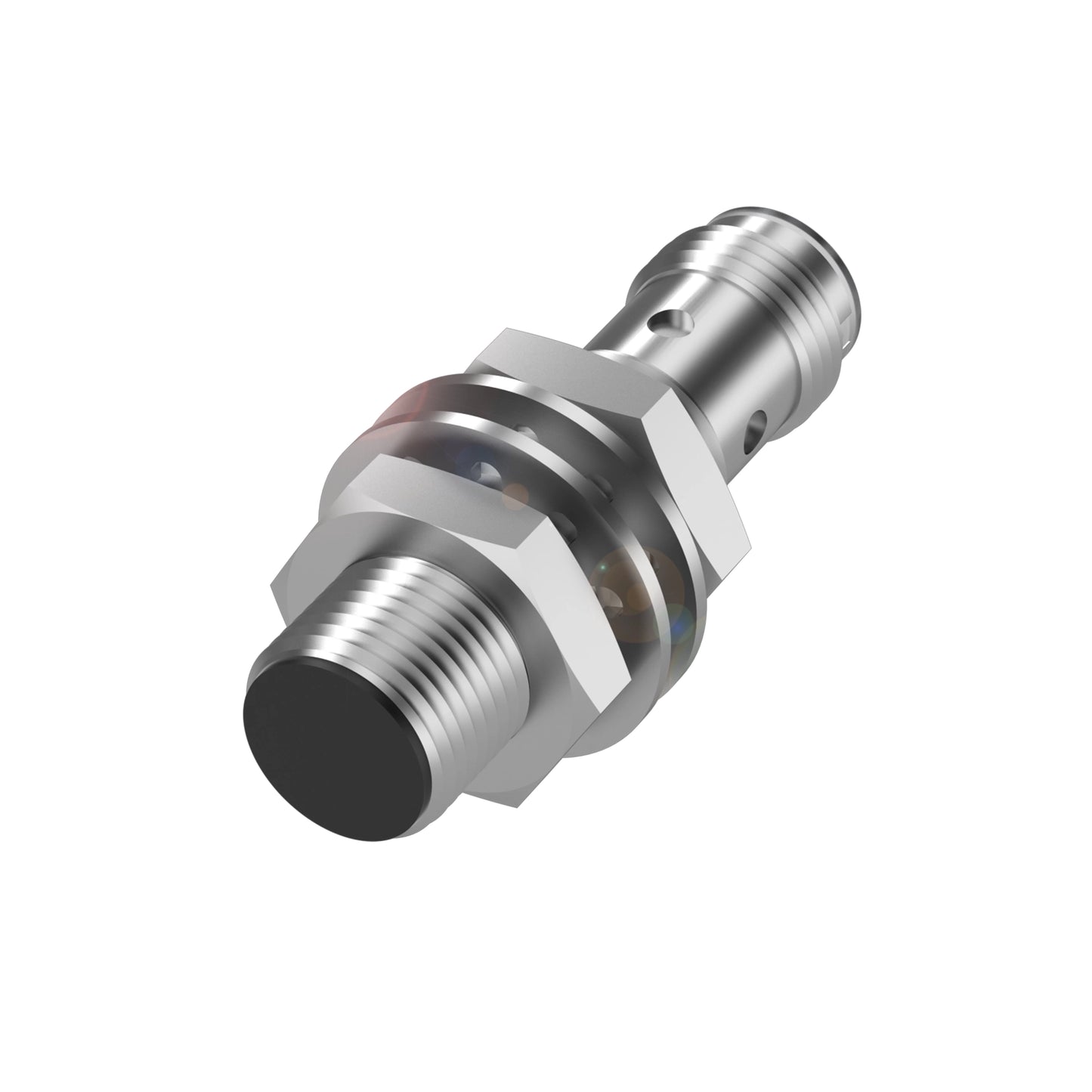

BALLUFF BES00PY INDUCTIVE STANDARD SENSOR

Name: BALLUFF BES00PY INDUCTIVE STANDARD SENSOR
Availability: InStock

BALLUFF BES00PY INDUCTIVE STANDARD SENSOR

$156.40 CAD

Sale Sold out

We have 114 in stock

Product variants

Quantity

Features and Benefits

Connection: M12x1-Male, 3-pin, A-coded
Operating temperature: -25 to 70 °C
IP rating: IP68
Shielded and unshielded versions
Plug or cable connection

View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 12 x 45 mm
Style Housing: M12x1
Installation: for flush mounting
Range: 4 mm
Switching output: PNP Normally open (NO)
Switching frequency: 2500 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP68
Approval/Conformity: CE, UKCA, cULus, WEEE
