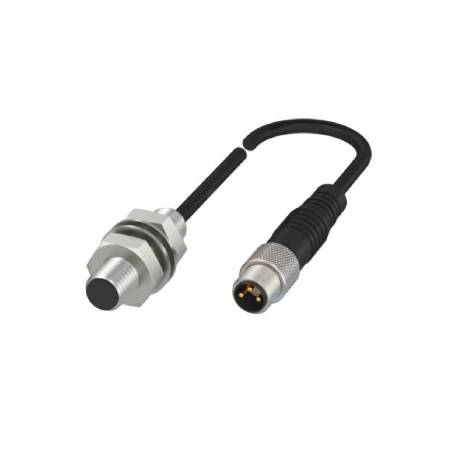

BALLUFF BES00P4 INDUCTIVE STANDARD SENSOR

BALLUFF BES00P4 INDUCTIVE STANDARD SENSOR

$203.05 CAD
$203.05 CAD
Sale Sold out
We have 12 in stock

Features and Benefits

  • Connection: M8x1-Male, 3-pin, Cable with connector, 0.30 m, PUR
  • Operating temperature: -40 to 85 °C
  • IP rating: IP68
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 8 x 30 mm
Style Housing: M8x1
Installation: for flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 5000 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Operating voltage Ub: 10...30 VDC
Ambient temperature: -40...85 °C
IP rating: IP68
Approval/Conformity: CE, UKCA, cULus, WEEE
