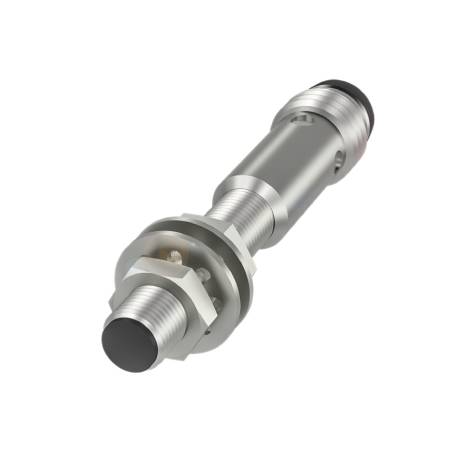

BALLUFF BES00HF INDUCTIVE STANDARD SENSOR

Name: BALLUFF BES00HF INDUCTIVE STANDARD SENSOR
Availability: InStock

BALLUFF BES00HF INDUCTIVE STANDARD SENSOR

$212.20 CAD

Sale Sold out

We have 2 in stock

Product variants

Quantity

Features and Benefits

Connection: M8x1-Male, 3-pin
Operating temperature: -25 to 70 °C
IP rating: IP67
Shielded and unshielded versions
Plug or cable connection

View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 5 x 41 mm
Style Housing: M5x0.5
Installation: for flush mounting
Range: 1.5 mm
Switching output: PNP Normally open (NO)
Switching frequency: 5000 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Connector, M8x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: cULus, CE, UKCA, WEEE
