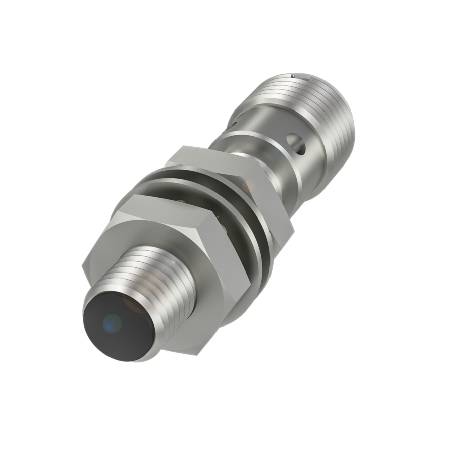

BALLUFF BES00FC INDUCTIVE STANDARD SENSOR

Name: BALLUFF BES00FC INDUCTIVE STANDARD SENSOR
Availability: InStock

BALLUFF BES00FC INDUCTIVE STANDARD SENSOR

$85.53 CAD

Sale Sold out

We have 1 in stock

Product variants

Quantity

Features and Benefits

Connection: M12x1-Male, 4-pin, A-coded
Operating temperature: -25 to 70 °C
IP rating: IP67
Shielded and unshielded versions
Plug or cable connection

View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 8 x 43 mm
Style Housing: M8x1
Installation: Flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 700 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: cULus, CE, UKCA, WEEE
