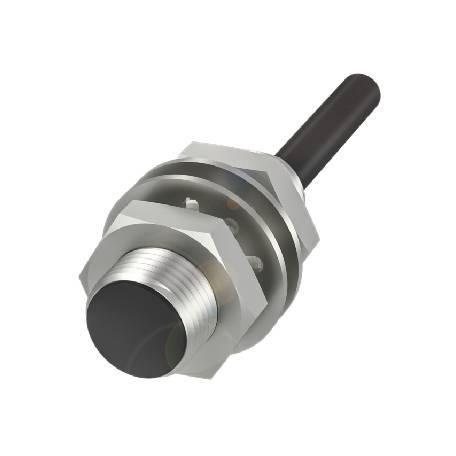

BALLUFF BES00E1 INDUCTIVE STANDARD SENSORS

BALLUFF BES00E1 INDUCTIVE STANDARD SENSORS

$78.55 CAD
$78.55 CAD
Sale Sold out

Features and Benefits

  • Connection: Cable, 2.00 m, TPU
  • Operating temperature: -25 to 70 °C
  • IP rating: IP68, according to BWN Pr 20
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 12 x 33 mm
Style Housing: M12x1
Installation: for flush mounting
Range: 4 mm
Switching output: NPN normally open (NO)
Switching frequency: 2500 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: PBT
Connection: Cable, 2.00 m, TPU
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP68, according to BWN Pr 20
Approval/Conformity: CE, UKCA, cULus, WEEE
