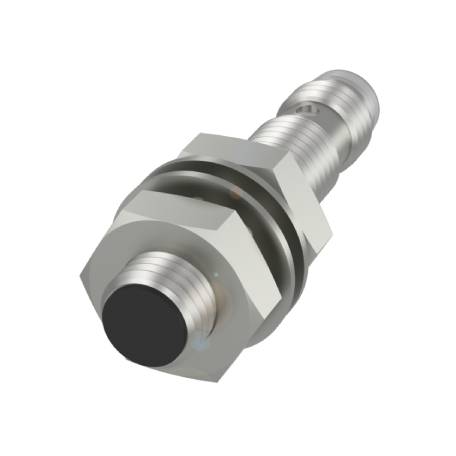

BALLUFF BES00C9 INDUCTIVE STANDARD SENSORS

BALLUFF BES00C9 INDUCTIVE STANDARD SENSORS

$85.53 CAD
$85.53 CAD
Sale Sold out
We have 12 in stock

Features and Benefits

  • Connection: M8x1-Male, 3-pin
  • Operating temperature: -40 to 85 °C
  • IP rating: IP68
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Data sheet

Specification

Dimension: Ø 8 x 40 mm
Style Housing: M8x1
Installation: for flush mounting
Range: 2 mm
Switching output: NPN Normally open (NO)
Switching frequency: 5000 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Connector, M8x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -40...85 °C
IP rating: IP68
Approval/Conformity: cULus, CE, WEEE
