Balluff

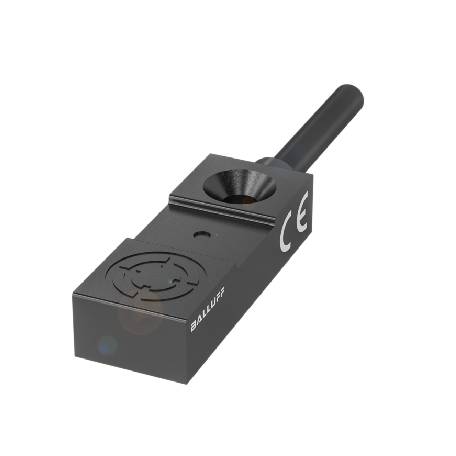

BALLUFF BES01WL INDUCTIVE STANDARD SENSORS

$177.86 CAD

Sale Out of Stock

We have 20 in stock

Product variants

Quantity

Features and Benefits

Connection: Cable, 5.00 m, TPU
Operating temperature: -25 to 70 °C
IP rating: IP67
Shielded and unshielded versions
Plug or cable connection

View full details

Description

Standard BES inductive sensors with preferred types for detecting electrically conductive metal objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application.

The technology used all over the world has an optimal price-quality ratio and is also available in large quantities in a short time.

Data sheet

Specification

Dimension: 30 x 10 x 6 mm
Style Housing: 30x10x6
Installation: for flush mounting
Range: 3 mm
Switching output: NPN Normally open (NO)
Switching frequency: 3000 Hz
Housing material: PA 6, GF30
Material sensing surface: PA 6, GF30/black
Connection: Cable, 5.00 m, TPU
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
