Balluff

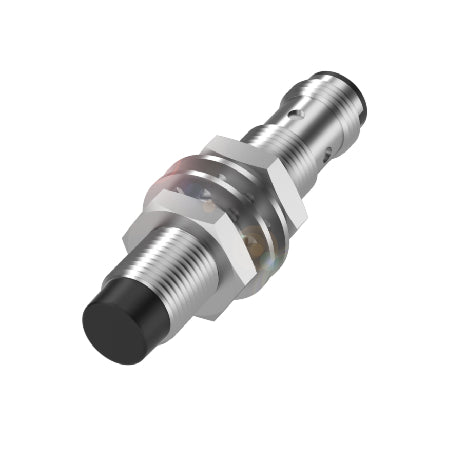

BALLUFF BES004N INDUCTIVE STANDARD SENSOR

BALLUFF BES004N INDUCTIVE STANDARD SENSOR

Regular price $69.81 CAD
Regular price Sale price $69.81 CAD
Sale Sold out
We have 32 in stock

Features and Benefits

  • Connection: Connector, M12x1-Male, 4-pin
  • Operating temperature: -25 to 70 °C
  • Operating Voltage Ub: 10 to 30 VDC
  • IP Rating: IP68
  • Material Sensing Surface: PBT
View full details

Description

Automation without inductive sensors can hardly be imagined. Wear-resistant, reliable non-contact position detection of metallic objects is required wherever automation is used, whether in mechanical engineering, electronics production, automotive, food, or plastics industries.

Balluff offers a wide range of inductive sensors with diverse designs for nearly any application: from standard sensors to sensors with increased switching distance, hygienic sensors, high-pressure sensors, ex-zone sensors for hazardous areas, and factor 1 sensors. Some sensors have an additional ceramic or PTFE coating so that weld spatter, for example, cannot adhere to them. Sensors that are both factor 1 and all-metal are also available.

Aided by inductive sensors from Balluff, you can automate, monitor, and control processes and conditions at the highest quality, even in extreme environments.

Specification

Dimension: Ø 12 x 60 mm
Style Housing: M12x1
Installation: Non-flush
Range: 8 mm
Switching output: PNP Normally open (NO)
Switching frequency: 1000 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP68
Approval/Conformity: CE, UKCA, cULus, WEEE
