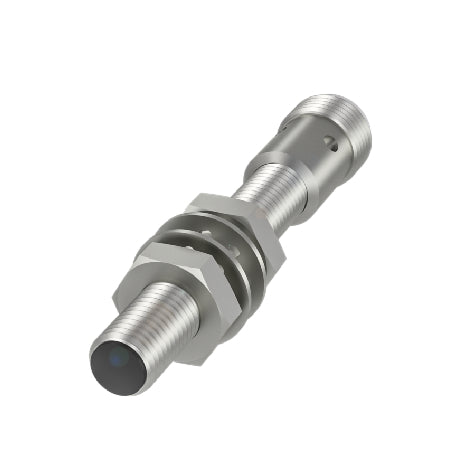

BALLUFF BES0028 INDUCTIVE PROXIMITY SWITCHES AND PROXIMITY SENSORS

Dimension: Ø 8 x 65 mm
Style Housing: M8x1
Installation: For flush mounting
Range: 2 mm
Switching output: PNP Normally open (NO)
Switching frequency: 700 Hz
Housing material: Brass, nickel-plated
Material sensing surface: PA 12
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 12...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: CE, UKCA, cULus, WEEE
