balluff

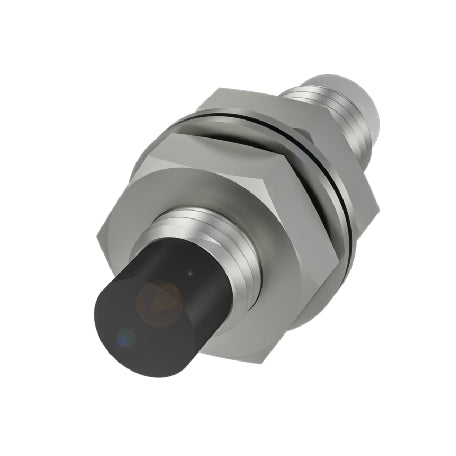

BALLUFF BES000M INDUCTIVE STANDARD SENSOR

BALLUFF BES000M INDUCTIVE STANDARD SENSOR

Regular price $81.24 CAD
Regular price Sale price $81.24 CAD
Sale Sold out

Features and Benefits

  • Connection: M8x1-Male, 3-pin
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Shielded and unshielded versions
  • Plug or cable connection
View full details

Description

Balluff offers a wide range of inductive proximity switches and sensors for various applications and industries. Whether standard inductive proximity sensors, high-pressure sensors, hygienic sensors / washdown compliant, factor 1 sensors, magnetic field resistant by magnetic shielding, weld immune proximity sensors, high temperature sensors, explosion-proof (IECEx, ATEX) or NAMUR sensors, you are guaranteed to find the right product for your individual application in our portfolio thanks to different housing materials and sealing methods. We offer different designs, housing diameters and thread sizes for easy integration in a wide range of situations and for optimum solutions even where space is limited.

The technology used worldwide has an optimum price-performance ratio and can be supplied in short delivery times, even for large quantities.

Increase the availability of your systems and reduce maintenance and storage costs at the same time with inductive proximity switches from Balluff.

Specification

Dimension: Ø 5 x 41 mm
Style Housing: M5x0.5
Installation: for flush mounting
Range: 1.5 mm
Switching output: NPN Normally open (NO)
Switching frequency: 5000 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Connector, M8x1-Male, 3-pin
Operating voltage Ub: 10...30 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: cULus, CE, UKCA, WEEE
