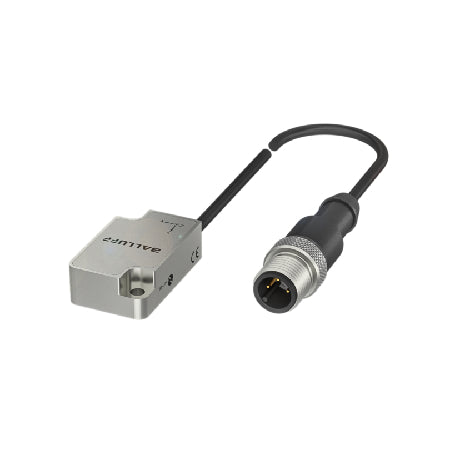

BALLUFF BCM0001 CONDITION MONITORING SENSOR

BALLUFF BCM0001 CONDITION MONITORING SENSOR

$570.87 CAD
$570.87 CAD
Sale Sold out
We have 1 in stock

Features and Benefits

  • Multiple measured variables in one device: vibration, temperature, humidity, air pressure
  • Integrated evaluation electronics with configurable data pre-processing
  • Extensive algorithms for vibration monitoring in time and frequency domain (FFT)
  • Quick to connect and easy to integrate via IO-Link
  • Flexible process data design for simultaneous transmission of up to 24 different process values
  • Functions for sensor self-monitoring
  • Compact design for easy integration - also as retrofit solution
View full details

Description

Condition monitoring sensors from Balluff record various physical variables, such as vibration, temperature, humidity, and air pressure. They process these variables and supply the desired data to a higher-level system via IO-Link. Thanks to the standardized IO-Link protocol, it is convenient to parameterize the sensors and tailor the evaluation within the sensor to the specific application. With the flexible process data design, up to 24 pieces of measured or pre-processed data can be freely configured and cyclically transmitted.

Our condition monitoring sensors thus make a significant contribution to the efficient and trouble-free operation of every plant and significantly increase the effectiveness of the entire plant.

Data sheet

Specification

Function: Vibration analysis in time domain, Contact temperature monitoring
Vibration, frequency range: 2…1800 Hz (±10 %), 2…2500 Hz (±3 dB)
Vibration, number of measuring axes: 3
Vibration velocity, measuring range RMS: 0…220 mm/s @79.4 Hz
Vibration, measuring range: -16…16 g
Contact temperature, measuring range: -25…+70 °C
Rated operating voltage Ue DC: 24 V
Interface: IO-Link 1.1
Connection: Cable with connector, M12x1-Male, 3-pin, 1.5 m, PUR
Housing material: 1.4404 stainless steel
IP rating: IP67, IP68, IP69K
Ambient temperature: -25...70 °C
