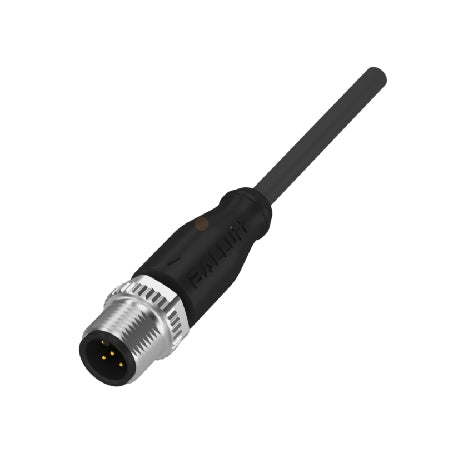

BALLUFF BCC0HM0 SINGLE ENDED CORDSETS

Connection: M12x1-Male, straight, 5-pin, A-coded
Switching output: Antivalent
Cable: PUR black, 15 m, Drag chain compatible
Number of conductors: 5
Conductor cross-section: 0.34 mm²
Cable temperature, fixed routing: -50...90 °C
Cable temperature, flexible routing: -25...90 °C
Operating voltage Ub: 60 VDC / 60 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP68, IP69K
Approval/Conformity: CE, cULus, WEEE
