Balluff

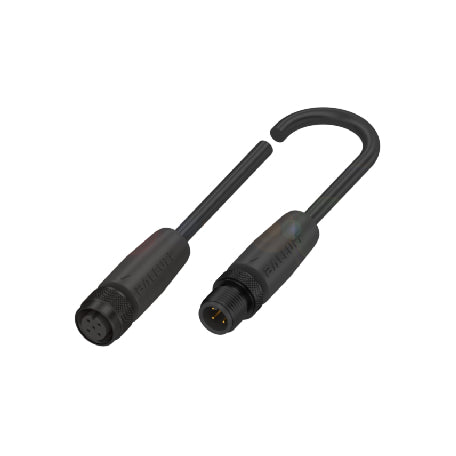

BALLUFF BCC0ELZ DOUBLE-ENDED CORDSETS

$70.32 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

The right connection for your special application
Various cable types, various plug connectors
Reliably transmit signals, data and power
Robust and industrial grade

View full details

Description

Data sheet

Specification

Connection 1: M12x1-Female, straight, 5-pin, A-coded
Connection 2: M12x1-Male, straight, 4-pin, A-coded
Cable: Silicone welding spark resistant black, 1 m
Number of conductors: 4
Cable temperature, fixed routing: -40...200 °C
Cable temperature, flexible routing: -25...200 °C
Operating voltage Ub: 250 VDC / 250 VAC
Rated current (40 °C): 4.0 A
IP rating: IP65/IP65
Approval/Conformity: CE, cULus, WEEE
