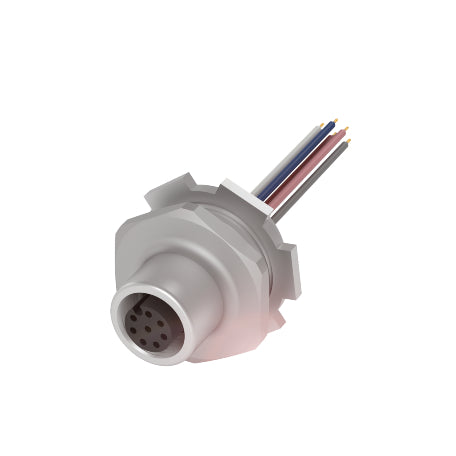

BALLUFF BCC0E1L RECEPTACLES

BALLUFF BCC0E1L RECEPTACLES

$120.59 CAD
$120.59 CAD
Sale Sold out

Features and Benefits

  • With socket and plug
  • Robust metal designs
  • Resistant to shocks and vibration
  • Protection class IP67
  • Different strand lengths available
View full details

Description

With Balluff you can select from a wide, flexibly applicable product range of receptacles in M8 and M12 sizes. You can get the connectors in 3-, 4-, 5-, 8- and 12-pin versions. All connectors are made of rugged metal, comply with IP67 and are resistant to shock and vibration.

Data sheet

Specification

Connection: M12x1-Female, straight, 8-pin, A-coded
Number of conductors: 8
Conductor cross-section: 22 AWG
Lead length L: 2.00 m
Operating voltage Ub: 60 VDC / 60 VAC
Rated current (40 °C): 2.0 A
IP rating: IP67
Approval/Conformity: cULus, WEEE
