• BALLUFF-BCC0CZ1-ManuAuto
1 1

balluff

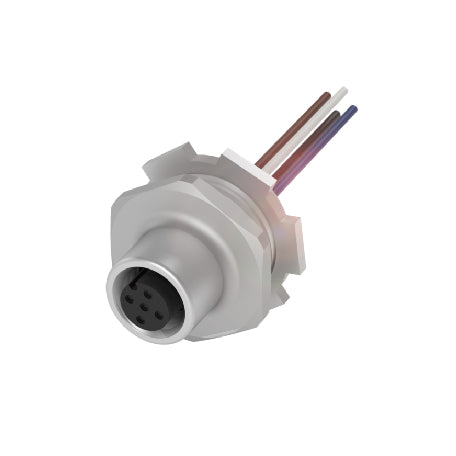

BALLUFF BCC0CZ1 RECEPTACLES

BALLUFF BCC0CZ1 RECEPTACLES

$85.57 CAD
$85.57 CAD
Sale Sold out

Features and Benefits

  • With socket and plug
  • Robust metal designs
  • Resistant to shocks and vibration
  • Protection class IP67
  • Different strand lengths available
View full details

Description

With Balluff you can select from a wide, flexibly applicable product range of receptacles in M8 and M12 sizes. You can get the connectors in 3-, 4-, 5-, 8- and 12-pin versions. All connectors are made of rugged metal, comply with IP67 and are resistant to shock and vibration.

Data sheet

Specification

Connection: M12x1-Female, straight, 4-pin, A-coded
Number of conductors: 4
Conductor cross-section: 22 AWG
Lead length L: 2.00 m
Operating voltage Ub: 300 VDC / 300 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67
Approval/Conformity: cULus, WEEE
