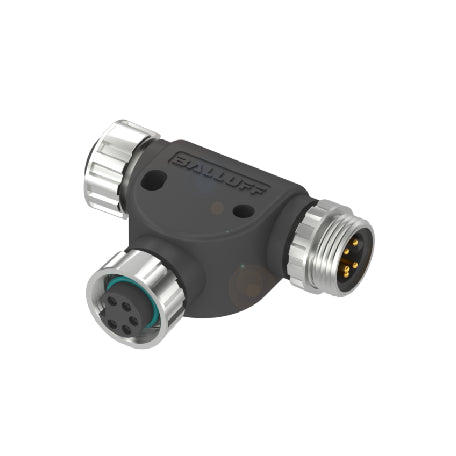

BALLUFF BCC0AA7 TEES

BALLUFF BCC0AA7 TEES

$129.15 CAD
$129.15 CAD
Sale Sold out

Features and Benefits

  • Connection 1: 7/8"-16 UN-Female, 5-pin
  • Connection 2: 7/8"-16 UN-Female, 5-pin
  • Connection 3: 7/8"-16 UN-Male, 5-pin
  • IP Rating: IP67
View full details

Description

For the reliable gathering, connecting and distributing of two signals, Balluff provides a wide range of t-splitters. Our solutions are distinguished by their small, narrow, and compact design. Different form factors are available.

Our wide product offering includes tees with M8, M12 and 7/8“ connection, which are appropriate for 3-, 4- and 5-wire cables. Different protective circuits and variants without, with one or with two mounting holes offer you great flexibility.

Data sheet

Specification

Connection 1: 7/8"-16 UN-Female, 5-pin
Connection 2: 7/8"-16 UN-Female, 5-pin
Connection 3: 7/8"-16 UN-Male, 5-pin
Operating voltage Ub: 300 VDC / 300 VAC
Rated current (40 °C): 10.0 A
IP rating: IP67
Ambient temperature: -25...80 °C
Approval/Conformity: CE, cURus, WEEE
