Balluff

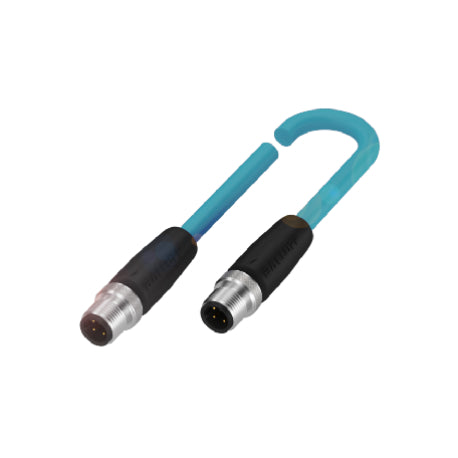

BALLUFF BCC09NP DOUBLE-ENDED CORDSETS

$147.84 CAD

Special Offer Out of Stock

Product variants

Features and Benefits

The right connection for your special application
Various cable types, various plug connectors
Reliably transmit signals, data and power
Robust and industrial grade

View full details

Description

Data sheet

Specification

Connection 1: M12x1-Female, straight, 5-pin, A-coded
Connection 2: M12x1-Male, straight, 4-pin, A-coded
Power indicator: LED green/no
Function indicator: yes/no
Function indicator (Pin 2): LED white
Function indicator (Pin 4): LED yellow
Cable: TPE welding spark resistant yellow, 2 m, Drag chain compatible
Number of conductors: 4
Cable temperature, fixed routing: -50...105 °C
Cable temperature, flexible routing: -25...105 °C
Operating voltage Ub: 30 VDC
Rated current (40 °C): 4.0 A
IP rating: IP65/IP65
Approval/Conformity: CE, WEEE
