Balluff

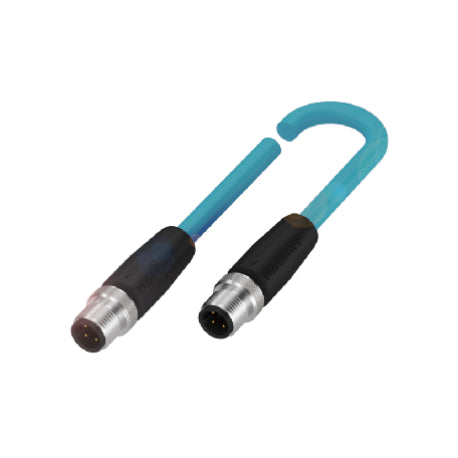

BALLUFF BCC09NN DOUBLE-ENDED CORDSETS

Name: BALLUFF BCC09NN DOUBLE-ENDED CORDSETS
Availability: InStock

BALLUFF BCC09NN DOUBLE-ENDED CORDSETS

$106.14 CAD

Sale Sold out

We have 4 in stock

Product variants

Quantity

Features and Benefits

The right connection for your special application
Various cable types, various plug connectors
Reliably transmit signals, data and power
Robust and industrial grade

View full details

Description

With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. You are guaranteed to find the correct connection for your application in your industry within our extensive range.
You can select from various cable types and various plug connectors.

Data sheet

Specification

Connection 1: M12x1-Male, straight, 4-pin, D-coded
Connection 2: M12x1-Male, straight, 4-pin, D-coded
Interface: EtherNet/IP
Cable: TPE Shielded teal, 2 m, Drag chain compatible
Number of conductors: 4
Cable temperature, flexible routing: -40...80 °C
Operating voltage Ub: 60 VDC
Rated current (40 °C): 1.5 A
IP rating: IP67/IP67
Approval/Conformity: CE, cULus, WEEE
