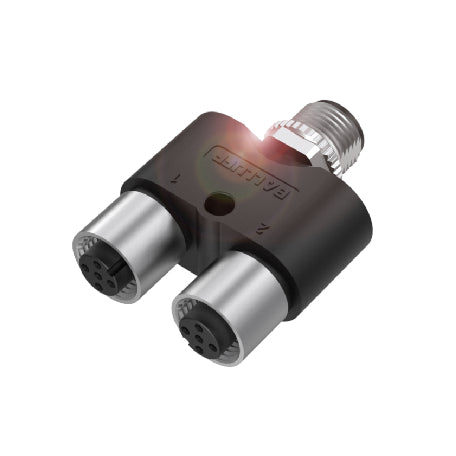

BALLUFF BCC089P TEES

BALLUFF BCC089P TEES

$44.53 CAD
$44.53 CAD
Sale Sold out
We have 6 in stock

Features and Benefits

  • Connection 1: M12x1-Male, 5-pin, A-coded
  • Connection 2: M12x1-Female, 4-pin, A-coded
  • Connection 3: M12x1-Female, 4-pin, A-coded
  • IP Rating: IP67
View full details

Description

For the reliable gathering, connecting and distributing of two signals, Balluff provides a wide range of t-splitters. Our solutions are distinguished by their small, narrow, and compact design. Different form factors are available.

Our wide product offering includes tees with M8, M12 and 7/8“ connection, which are appropriate for 3-, 4- and 5-wire cables. Different protective circuits and variants without, with one or with two mounting holes offer you great flexibility.

Data sheet

Specification

Connection 1: M12x1-Male, 5-pin, A-coded
Connection 2: M12x1-Female, 4-pin, A-coded
Connection 3: M12x1-Female, 4-pin, A-coded
Operating voltage Ub: 125 VDC / 125 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67
Ambient temperature: -25...80 °C
Approval/Conformity: CE, cURus, WEEE
