Balluff

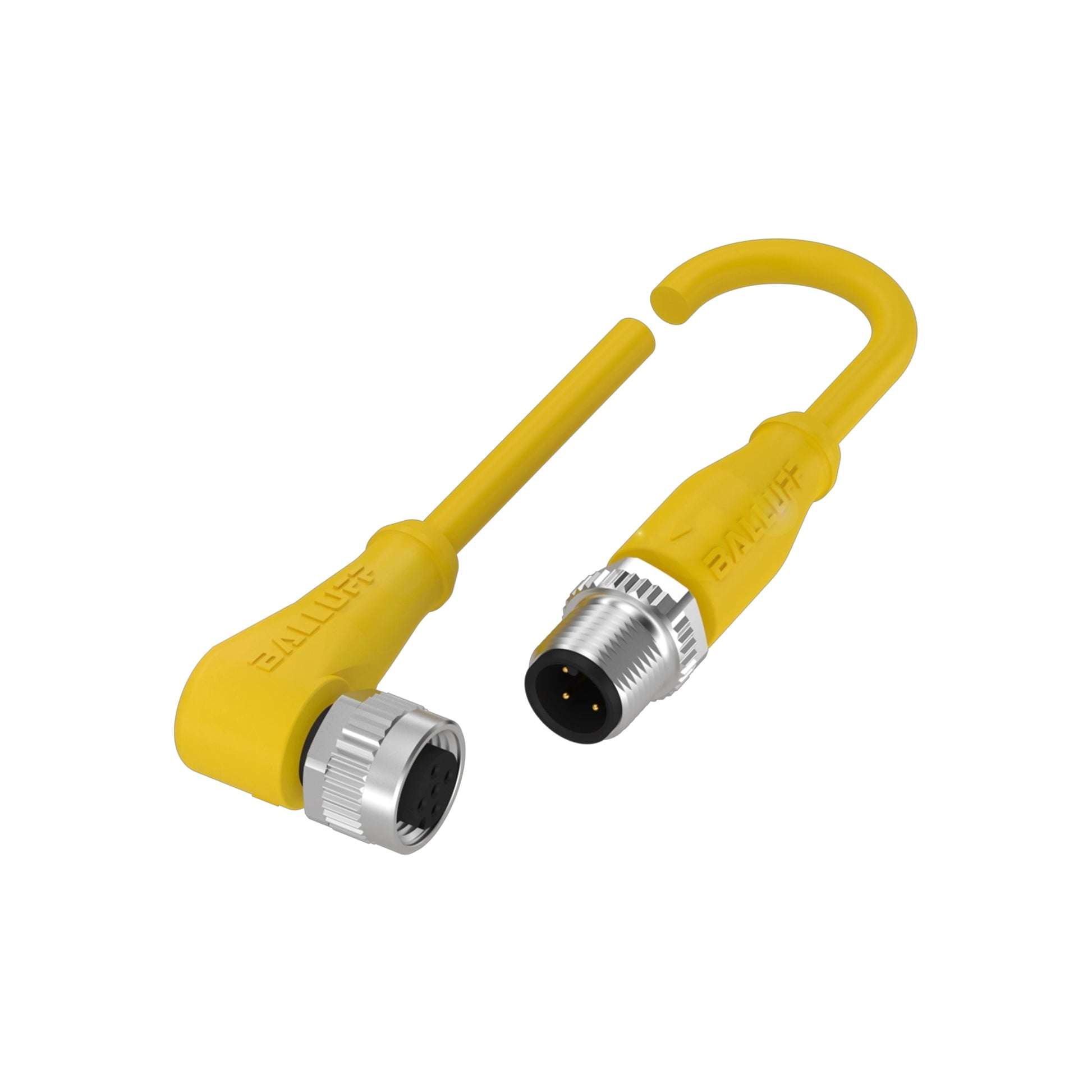

Balluff BCC060N Double-Ended Cordsets

$24.00 CAD

~~$37.00 CAD~~ $24.00 CAD

Special Offer Out of Stock

We have 30 in stock

Product variants

Quantity

Features and Benefits

Connection 1: M12x1-Female, angled, 5-pin, A-coded
Connection 2: M12x1-Male, straight, 4-pin, A-coded
Cable: TPE Yellow, 1 m, drag chain compatible
Number of conductors: 4
Cable temperature, fixed routing: -50 to 105 °C
Operating voltage Ub: 250 VDC / 250 VAC

View full details

Description

With Balluf's robust double-ended cordsets, signals, data, and power are transmitted continuously and securely. You are guaranteed to find the correct connection for your application in your industry within our extensive range.

Data sheet

Specification

Connection 1: M12x1-Female, angled, 5-pin, A-coded
Connection 2: M12x1-Male, straight, 4-pin, A-coded
Cable: TPE Yellow, 1 m, drag chain compatible
Number of conductors: 4
Cable temperature, fixed routing: -50 to 105 °C
Cable temperature, flexible routing: -25 to 105 °C
Operating voltage Ub: 250 VDC / 250 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity: CE, cULus, WEEE

Balluff BCC060N Double-Ended Cordsets
