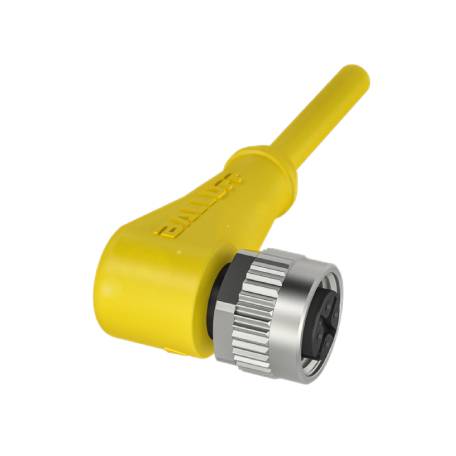

BALLUFF BCC05TJ SINGLE ENDED CORDSETS

BALLUFF BCC05TJ SINGLE ENDED CORDSETS

$25.27 CAD
$25.27 CAD
Sale Sold out

Features and Benefits

  • Connection: M12x1-Female, angled, 5-pin, A-coded
  • Switching Output: Antivalent
  • Cable: PVC yellow, 5m, Drag chain compatible, 4 conductors, 22 AWG
  • Ratings: 250 VDC/250 VAC, 4.0 A (40°C), IP67, IP68, IP69K
  • Cable Temperature: -40 to 105°C (fixed routing), -5 to 105°C (flexible routing)
  • Approval/Conformity: CE, cULus, WEEE
View full details

Description

In our comprehensive product range of single-ended cordsets for every industry, you are guaranteed to find the right connection for your application. Signals, data and power are always reliably transmitted.

Different cable types and plug connectors expand your flexibility in the choice of the right single-ended cordsets.

Data sheet

Specification

Connection: M12x1-Female, angled, 5-pin, A-coded
Switching output: Antivalent
Cable: PVC yellow, 5 m, Drag chain compatible
Number of conductors: 4
Conductor cross-section: 22 AWG
Cable temperature, fixed routing: -40...105 °C
Cable temperature, flexible routing: -5...105 °C
Operating voltage Ub: 250 VDC / 250 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP68, IP69K
Approval/Conformity: CE, cULus, WEEE
