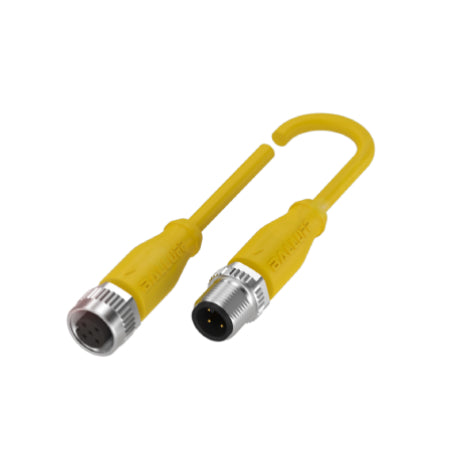

BALLUFF BCC05M3 DOUBLE-ENDED CORDSETS

BALLUFF BCC05M3 DOUBLE-ENDED CORDSETS

$63.26 CAD
$63.26 CAD
Sale Sold out
We have 2 in stock

Features and Benefits

  • The right connection for your special application
  • Various cable types, various plug connectors
  • Reliably transmit signals, data and power
  • Robust and industrial grade
View full details

Description

With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. You are guaranteed to find the correct connection for your application in your industry within our extensive range.

You can select from various cable types and various plug connectors.

Data sheet

Specification

Connection 1: M12x1-Female, straight, 5-pin, A-coded
Connection 2: M12x1-Male, straight, 4-pin, A-coded
Cable: TPE yellow, 10 m, Drag chain compatible
Number of conductors: 4
Cable temperature, fixed routing: -50...105 °C
Cable temperature, flexible routing: -25...105 °C
Operating voltage Ub: 250 VDC / 250 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity: CE, cULus, WEEE
