Balluff

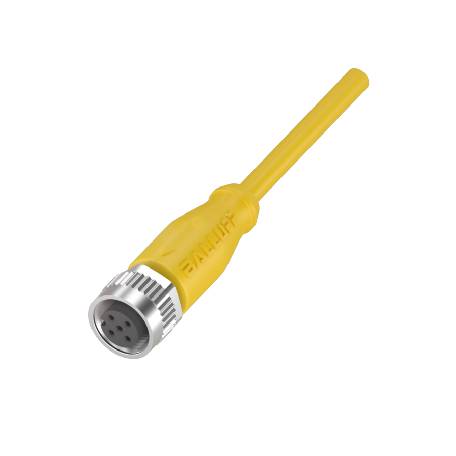

BALLUFF BCC05F9 SINGLE-ENDED CORDSETS

$33.74 CAD

Sale Sold out

We have 18 in stock

Product variants

Quantity

Features and Benefits

Large selection for every industry
Various cable types, various plug connectors
Robust and industrial grade

View full details

Description

In our comprehensive product range of single-ended cordsets for every industry, you are guaranteed to find the right connection for your application. Signals, data and power are always reliably transmitted.

Different cable types and plug connectors expand your flexibility in the choice of the right single-ended cordsets.

Data sheet

Specification

Connection: M12x1-Female, straight, 5-pin, A-coded
Switching output: Antivalent
Cable: TPE yellow, 5 m, Drag chain compatible
Number of conductors: 4
Conductor cross-section: 22 AWG
Cable temperature, fixed routing: -50...105 °C
Cable temperature, flexible routing: -25...105 °C
Operating voltage Ub: 250 VDC / 250 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP68, IP69K
Approval/Conformity: CE, cULus, WEEE
