Balluff

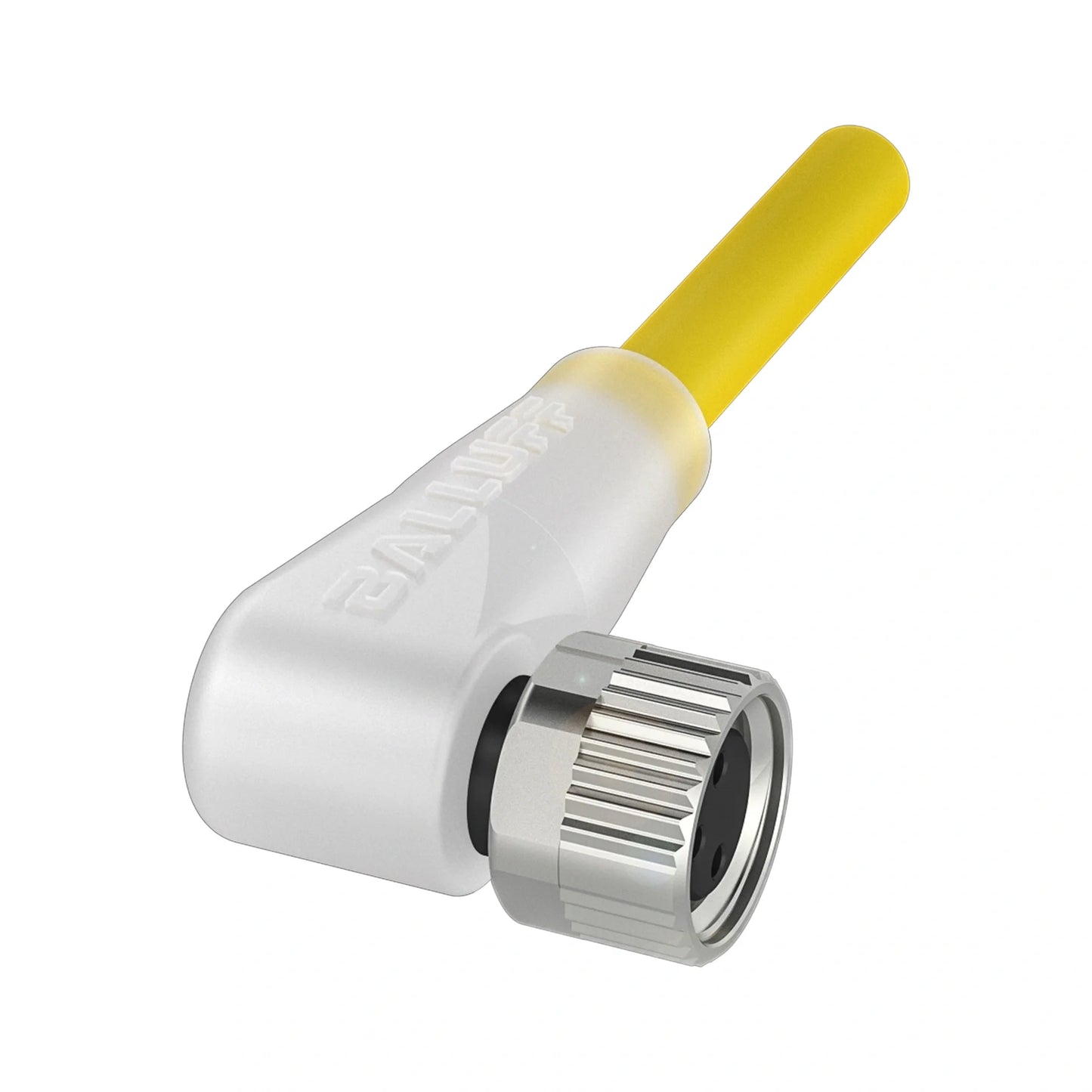

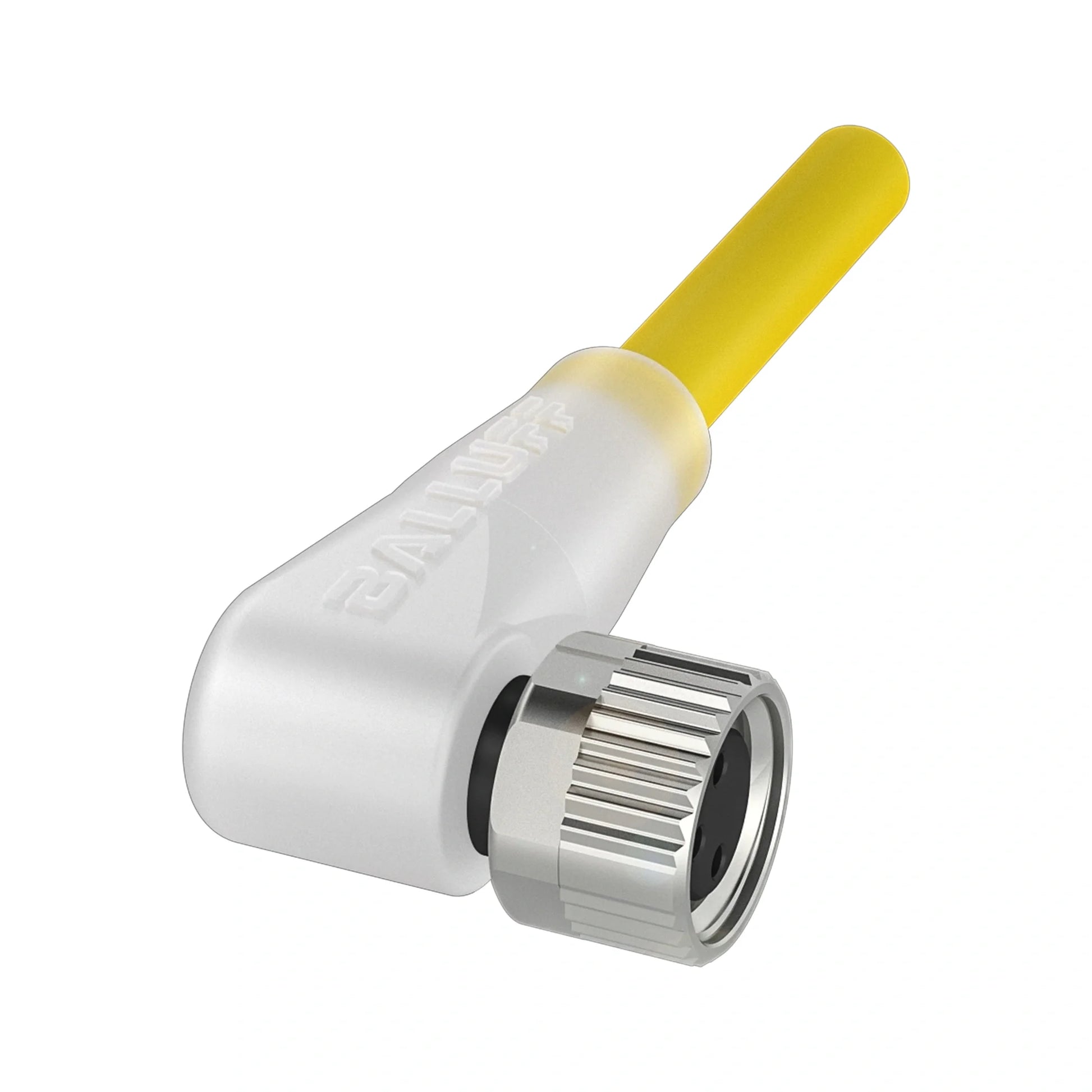

Balluff BCC055R Single Ended Cordset

$50.00 CAD

Special Offer Out of Stock

We have 4 in stock

Product variants

Quantity

Features and Benefits

Connection: M8x1-Female, Angled, 3-pin, A-coded
Switching Output: PNP Normally Open (NO)
Operating Voltage Ub: 30 VDC
Rated Current: (40 °C): 4.0 A
Cable Temperature (Fixed Routing): -40...105 °C
Cable Temperature, (Flexible Routing): -5...105 °C

View full details

Description

In balluff comprehensive product range of single-ended cordsets for every industry, you are guaranteed to find the right connection for your application. Signals, data and power are always reliably transmitted.
Different cable types and plug connectors expand your flexibility in the choice of the right single-ended cordsets.

Data sheet

Specification

Connection: M8x1-Female, angled, 3-pin, A-coded
Power indicator: LED green
Function indicator (Pin 4): LED yellow
Switching output: PNP Normally open (NO)
Cable: PVC yellow, 10 m, Drag chain compatible
Number of conductors: 3
Conductor cross-section: 22 AWG
Cable temperature, fixed routing: -40...105 °C
Cable temperature, flexible routing: -5...105 °C
Operating voltage Ub: 30 VDC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP69K
Approval/Conformity: CE, cULus, WEEE

Balluff BCC055R Single Ended Cordset
