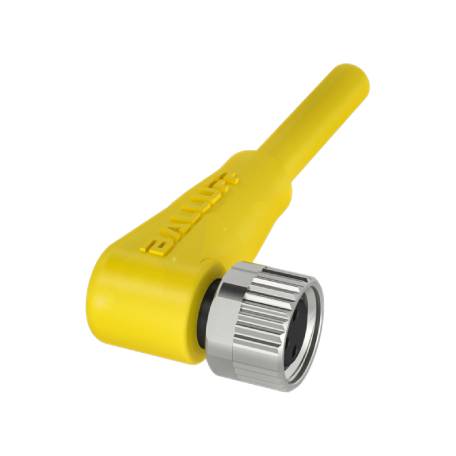

BALLUFF BCC0556 SINGLE ENDED CORDSETS

BALLUFF BCC0556 SINGLE ENDED CORDSETS

$29.56 CAD
$29.56 CAD
Sale Sold out
We have 12 in stock

Features and Benefits

  • Large selection for every industry
  • Various cable types, various plug connectors
  • Robust and industrial grade
View full details

Description

In our comprehensive product range of single-ended cordsets for every industry, you are guaranteed to find the right connection for your application. Signals, data and power are always reliably transmitted.

Different cable types and plug connectors expand your flexibility in the choice of the right single-ended cordsets.

Data sheet

Specification

Connection: M8x1-Female, angled, 3-pin, A-coded
Cable: TPE yellow, 5 m, Drag chain compatible
Number of conductors: 3
Conductor cross-section: 22 AWG
Cable temperature, fixed routing: -50...105 °C
Cable temperature, flexible routing: -25...105 °C
Operating voltage Ub: 60 VDC / 60 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP69K
Approval/Conformity: CE, cULus, WEEE
