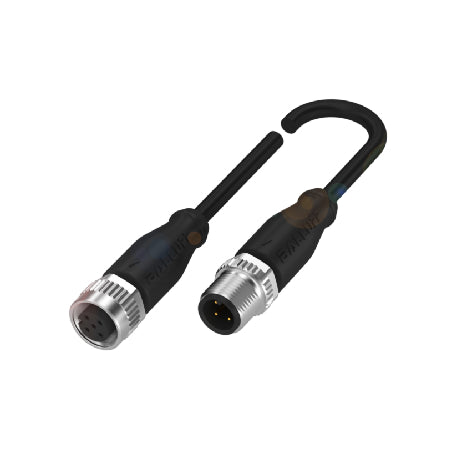

BALLUFF BCC039K DOUBLE-ENDED CORDSETS

Name: BALLUFF BCC039K DOUBLE-ENDED CORDSETS
Availability: BackOrder

BALLUFF BCC039K DOUBLE-ENDED CORDSETS

$30.55 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

The right connection for your special application
Various cable types, various plug connectors
Reliably transmit signals, data and power
Robust and industrial grade

View full details

Description

With our robust double-ended cordsets, signals, data and power are transmitted continuously and securely. You are guaranteed to find the correct connection for your application in your industry within our extensive range.

You can select from various cable types and various plug connectors.

Data sheet

Specification

Connection 1: M12x1-Female, straight, 5-pin, A-coded
Connection 2: M12x1-Male, straight, 4-pin, A-coded
Cable: PUR black, 1 m, Drag chain compatible
Number of conductors: 4
Cable temperature, fixed routing: -50...90 °C
Cable temperature, flexible routing: -25...90 °C
Operating voltage Ub: 250 VDC / 250 VAC
Rated current (40 °C): 4.0 A
IP rating: IP67, IP68, IP69K
Approval/Conformity: CE, cULus, WEEE
