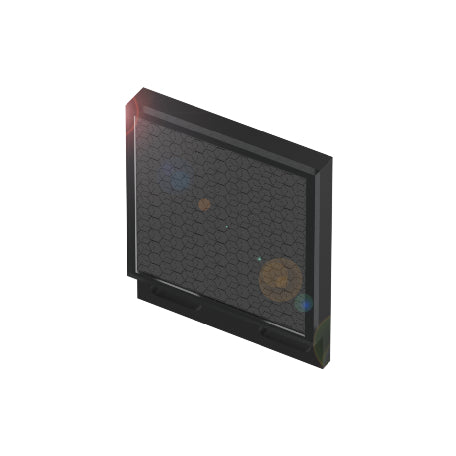

BALLUFF BAM00WL REFLECTORS AND REFLECTIVE FOILS

BALLUFF BAM00WL REFLECTORS AND REFLECTIVE FOILS

$12.89 CAD
$12.89 CAD
Sale Sold out

Features and Benefits

  • Precise and robust
  • Easy attachment using adhesives or screws
  • Various designs
  • High-quality materials
  • Homogeneous optical properties
View full details

Description

Our reflectors are the right choice for any environment. Choose from round or square reflectors and reflective foils, which are heat- and chemical-resistant. They are suitable for red, white, or infrared light and laser applications.

Balluff reflectors and reflective foils realize their full functionality in conjunction with our optoelectronic sensors. For customized use in your application, choose between different sizes and mounting options.

Data sheet

Specification

Use: for retro-reflective sensor
Style: Square
Mounting: 2 mounting holes
Dimension: 51 x 61 x 8 mm
Sensing surface: 22.6 cm²
Ambient temperature: -20...60 °C
Material sensing surface: PMMA
Light type: non-polarized light, also for polarized light
Mounting part: Glue
Screw: M4
